Original Stock Raspberry Pi 5 Board RPI 5 2GB 4GB of 8GB Computer – 8GB ram Starter Pack 4G 8G Industrial Pc Complete Kit Board

Description

• Description : Raspberry Pi 5
• Model Number : RPI 5, Raspberry Pi 5
• Type : Development Board, Embedded System Development Boards
• Place of Origin : United Kingdom
• Brand Name : RPI
• Board Type : Single Board Computers SBC
• Mounting Type : Other Mounting Type
• Chipset : Raspberry Pi 5 Model B
• Processor Brand : Broad-com BCM2712
• VideoCore VII GPU : supporting OpenGL ES 3.1, Vulkan 1.2
• Display output : Dual 4Kp60 HD-MI
• Wi-Fi : Dual-band 802.11ac Wi-Fi
• Blue-tooth : Blue-tooth 5.0
• microSD card slot : Yes
• Gigabit Ethernet : with PoE+ support requires separate PoE+ HAT

Original Stock raspberry pi 5 module antena 4GB 8GB computer 4G 8G raspberry pi 5 board – 8gb ram starter pack

Products Description

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HD-MI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or
displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

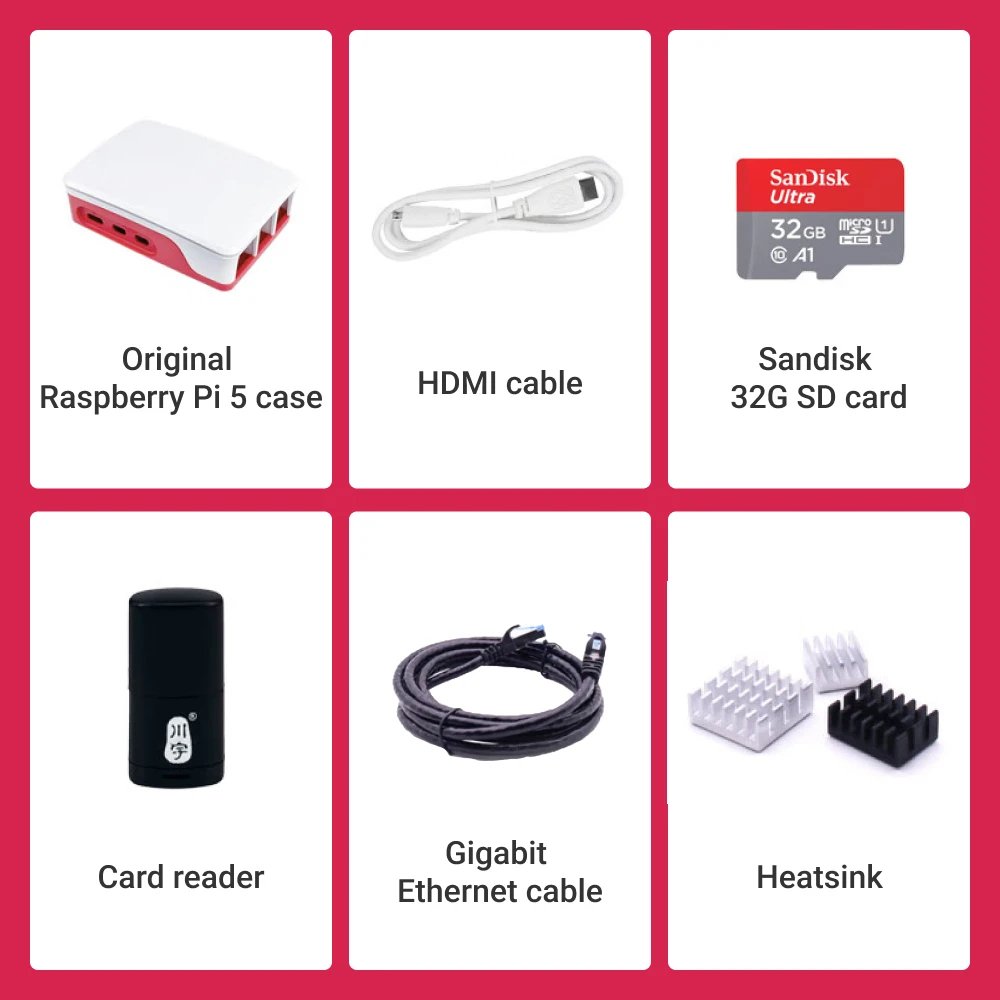

Raspberry PI 5 Kit

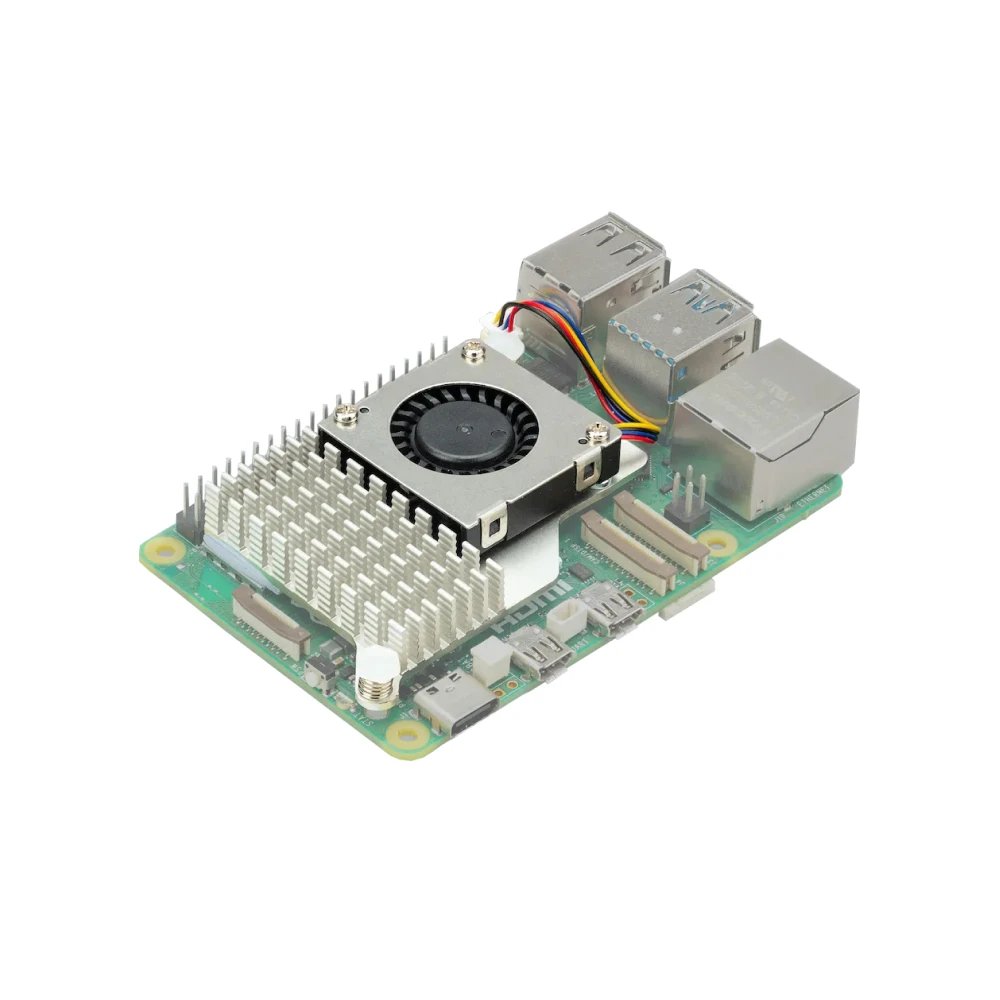

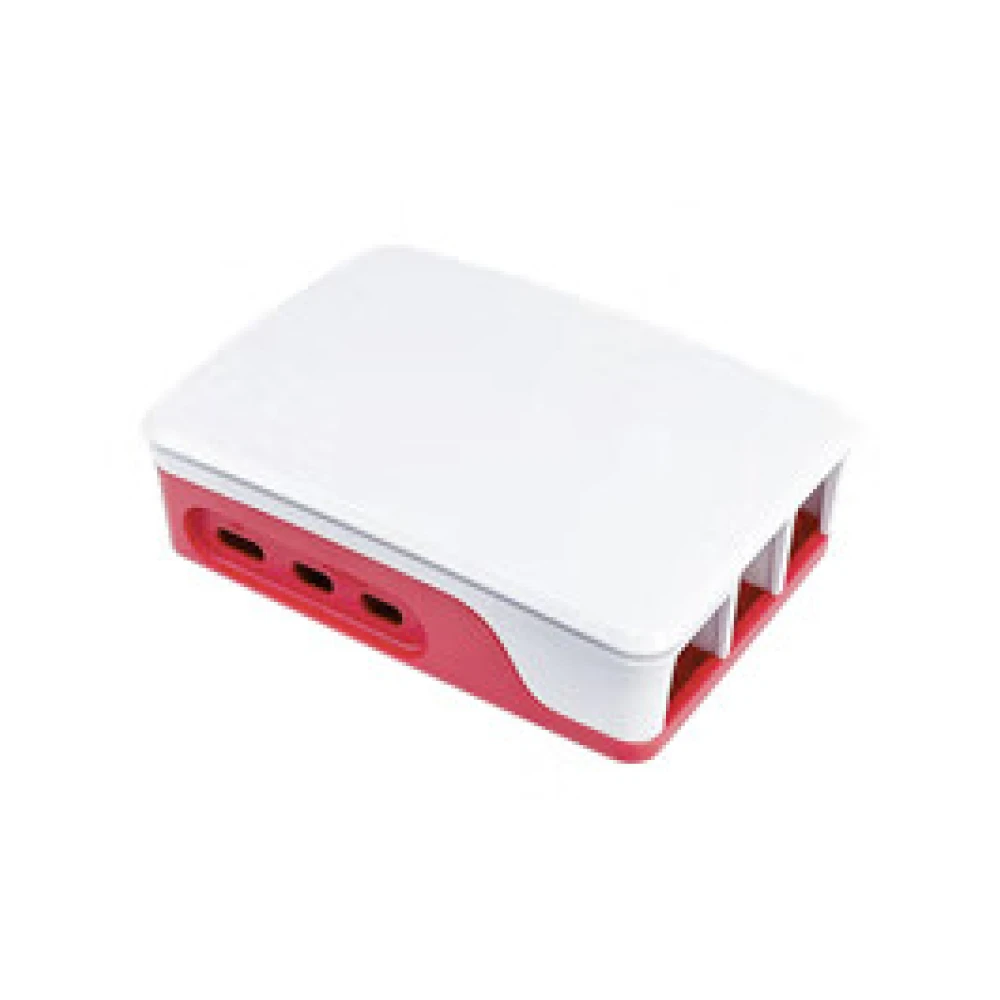

EU/UK/US power supply Original raspberry pi 5 Case Original active cooler Heatsink

Details Images

Specification

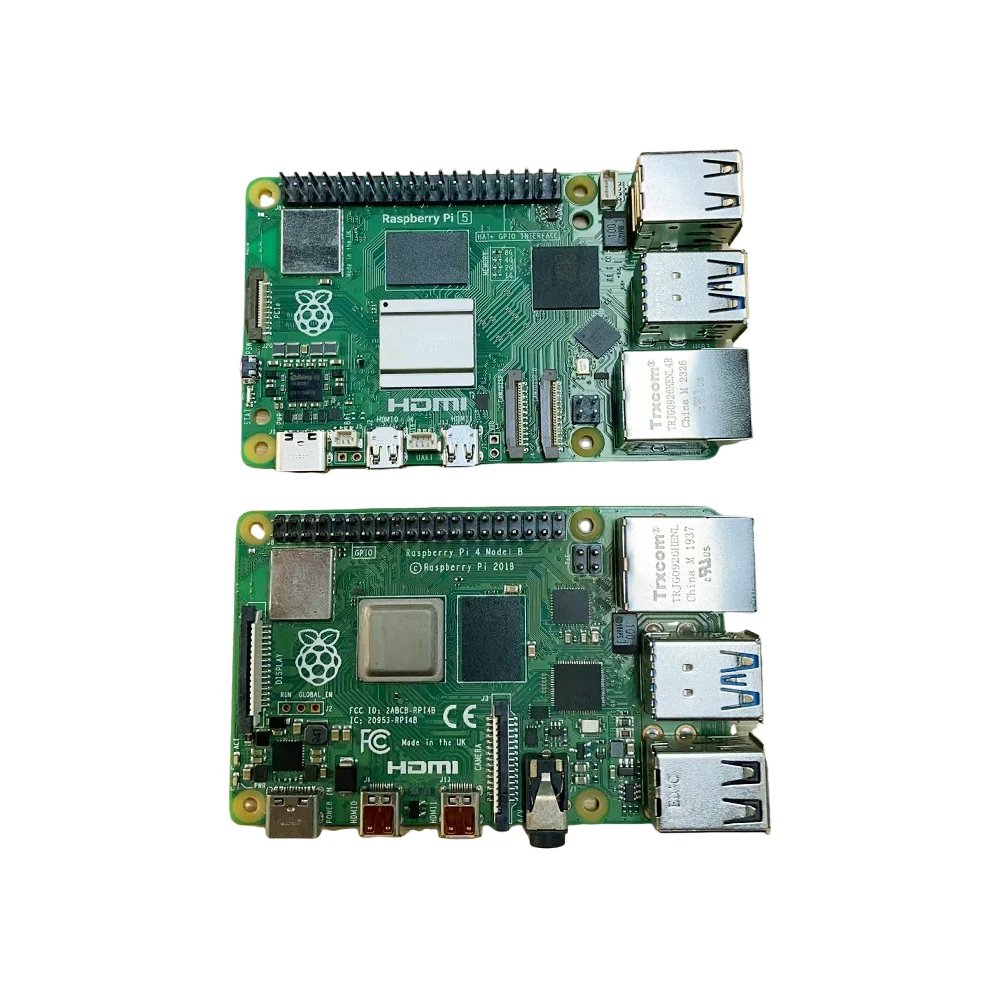

Features	Raspberry Pi  5	Raspberry PI 4
Release Date	28th Sept 2023	24th Jun 2019
SoCTypeProcessor	Broad-com BCM2712	Broad-com BCM2711
No, of Cores	Quad-Core
CPU Clock	2.4GHz	1.5GHz
GPU	VideoCore VIl	VideoCore VI
Multimedia	OpenGL ES 3.1,Vulkan 1.3	OpenGLES 1.1,2.0,3.0 Graphics
OS  Storage	microSD,NVMe SSD M.2 HAT	microSD
RAM	LPDDR4X-4627  8GB,4GB,2GB*and 1GB*	LPDDR4-3200: 8GB,4GB,2GBand1GB
Audio/Video Output	Video Output via PCB pads	3.5mm Jack: Audio/Video Composite
Ethernet	Gigabit Ethernet
USB Port	2x USB 3.05Gbps simultaneously  2 X USB 2.0	2xUSB 3.0 2xUSB 2.0
HD-MI	2 x micro HD-MI support Dual Display,4Kp60
Wifi	802.11b/g/n/ac2.4GHz and 5GHz
Blue-tooth	Blue-tooth 5.0 /BLE
Antenna	PCB Antenna
GPIO	40 PinsFully backward-compatible
Dedicated Port	UART RTC External Battery Cooler Fan	No
Camera Port	2 x 4 lane MIPI camera or display transceivers	1×2 lane MIPI Camera
Display Port		1x 2 lane MIPI Display
On / Off Button	Yes	No
Operating System	Raspberry Pi OS Bookworm > 28 September 2023	Raspberry Pi OS Bullseye >24 Jun 2019
Dimension	85mm x 56mm
Power Input	5V via USB Type Cup to 5A，PD 5V via GPIO Header up to 5A Power over Ethernet, requires PoE+ HAT	5V via USB Type Cup to 3A 5V via GPIO Headerup to 3A Power over Ethernet, requires PoE+HAT
